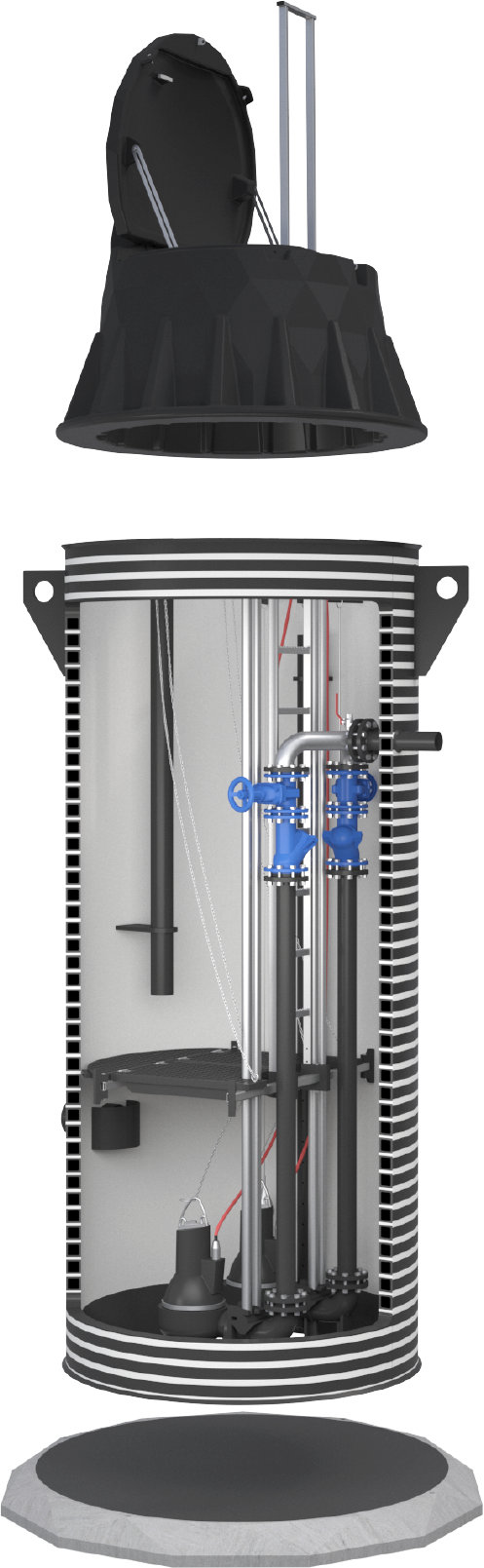

Pumping stations

ID1200-1600

Cover

Option 1

Plastic cover /
service opening
  • PE, rotomold
  • Thermal insulation

Option 2

Cast iron
cover
  • DN 900
  • 40T
  • EN 124

Tank
cylinder

Double wall
spiral pipe
  • PE100
  • EN 13476
  • 100% recycable

Content

Bottom

Anchoring
bottom
  • PE100 / reinforced concrete

Content

Handrail
  • AISI316
  • Telescope
  • EN 14396

Ladder
  • AISI316
  • Non-slip rungs
  • EN 14396

Service platform
  • PE100 or AISI316
  • Two-way opening
Gate valves
  • Ductile iron (GGG50)
  • Epoxide coating, EPDM rubber
  • EN 558-2

Check valves
  • Ductile iron (GGG50)
  • Epoxide coating, NBR ball
  • EN 12050-4

Electrofusion and butt-welding fittings
  • PE100-RC

Lifting chains
  • AISI 316
  • EN 10204-3.1 / EC, CE-marked

Gaskets
  • EPDM
  • EN 1514-1

Bolts, nuts, washers
  • AISI316
  • DIN985, EN ISO 10511

Cover

Option 1

Plastic cover /
service opening
  • PE, rotomold
  • Thermal insulation

Option 2

Cast iron
cover
  • DN 900
  • 40T
  • EN 124

Tank
cylinder

Double wall
spiral pipe
  • PE100
  • EN 13476
  • 100% recycable

Content

Bottom

Anchoring
bottom
  • PE100 / reinforced concrete
