NEW CONCRETE
ANCHORING BOTTOM

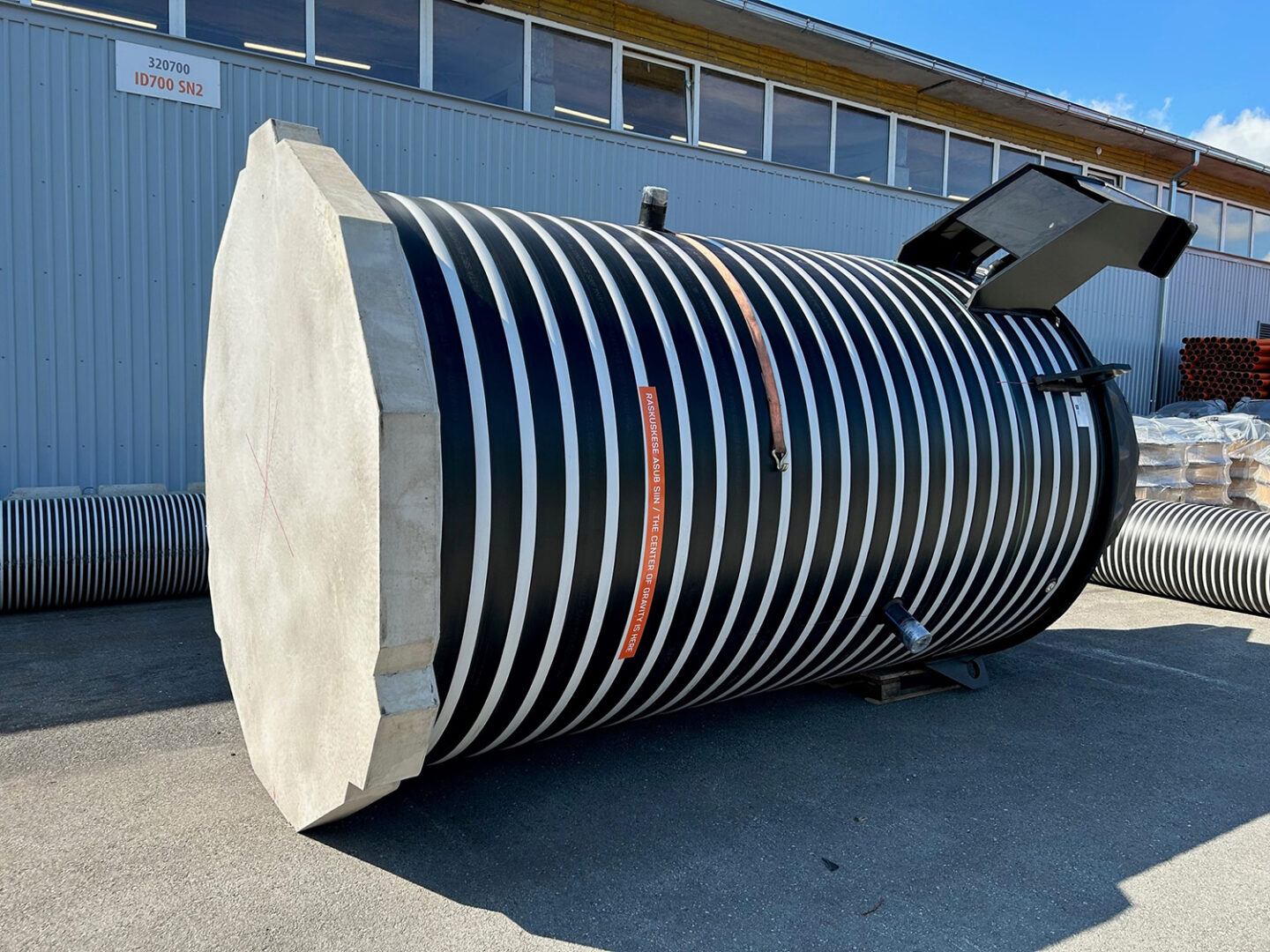

A reinforced concrete anchor plate is added to the STRONG ID2000 mm pumping station during production, to which three reinforced concrete anchor parts must be added in the trench.

The dimensions and reinforcement of the anchoring plate are designed taking into a account that the pumping station, if properly installed, remains firmly in the ground to the maximum possible extent at groundwater level.

IWSGroup CE EN 12050 1
IWSGroup
IWSGroup
TANK CYLINDER
  • PE100
  • EN 13476
  • 100% recyclable
IWSGroup
ANCHORING BOTTOM
  • PE100 / reinforced concrete
  • Concrete class: C35/45
  • Environment class: XC2
IWSGroup
ANCHORING PARTS
  • PE100 / reinforced concrete
  • Concrete class: C35/45
  • Environment class: XC2

ID2000 PUMPING STATION BOTTOM AND ANCHORING PARTS

IWSGroup
IWSGroup
IWSGroup
IWSGroup

INSTALLATION OF THE ANCHORING PARTS OF THE ID2000 PUMPING STATION

IWSGroup
IWSGroup
IWSGroup
IWSGroup
IWSGroup
IWSGroup

FROM PRODUCTION TO INSTALLATION
